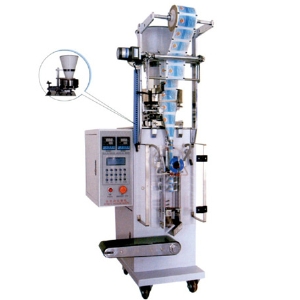

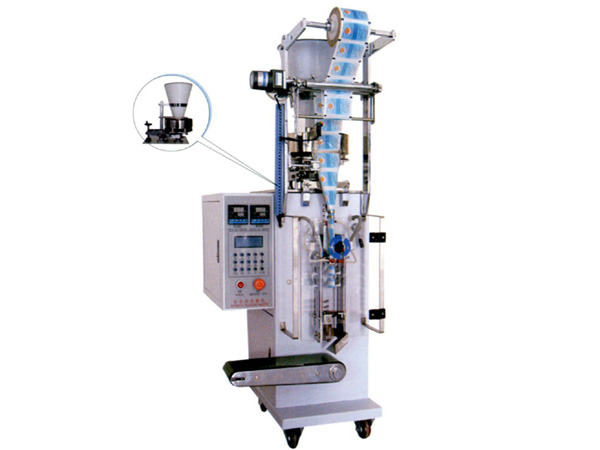

The JL-Q200 fully automatic granular material packaging machine is suitable for packaging granular products with good free flow. Such as pharmaceutical granules, salt, monosodium glutamate, tea, desiccants, pesticide particles, seeds, etc.

Technical features

1. Computer control, LCD display, easy operation, stable and reliable operation.

2. Stepper motor controlled bag pulling system, with high bag making accuracy.

3. Stop the bagging process, and the heat sealing tool will automatically be in an open state after the shutdown.

4. Fully automatic tracking of color codes, automatically completing the positioning and length determination of packaging bags.

5. Adjust the measurement by changing the screw ring to a hand cranked lever type. The door lever and bracket are integrated, and the measurement can be adjusted based on the machine's operating status. More convenient and secure operation.

technical parameter

Packaging speed: 30-60 bags/minute 40-80

Measurement range: 20-100 1-50 milliliters

Bag size: length 40-160, width 40-120 millimeters

Measurement method: cup capacity

Power: 0.8 kW

Power supply voltage: 380V three-phase four wire system

Weight: 180 kilograms

Dimensions: Length x Width x Height=730 x 630 x 1580 (mm)
